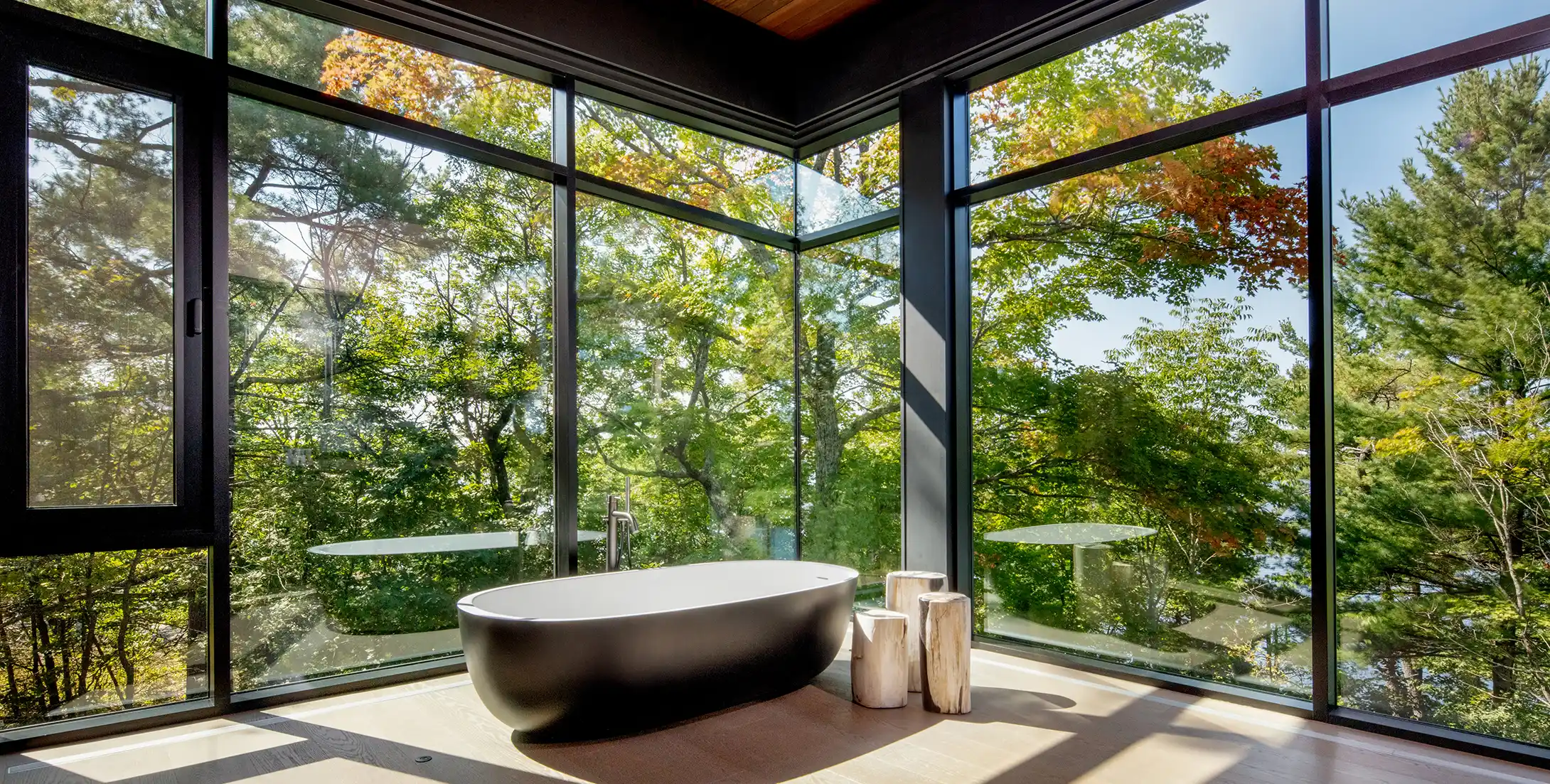

The Schuco Facade Wall System FWS 50.SI sets the new standard for fabrication and energy efficiency in curtainwall technology. The FWS 50.SI provides architects with a diverse range of options, including the Passive House certified SI 'Super Insulation' version.
With a narrow sightline of 50mm (2"), and depths of up to 250mm (10"), you can achieve soaring heights and massive glass panels without compromise.
PROFILE
PERFORMANCE TEST
AIR INFILTRATION @300Pa | 6.27 psf
WATER PENETRATION
THERMAL - DOUBLE GLASS
THERMAL - TRIPLE GLASS
DOOR PERFORMANCE
0.02 cfm/ft2
1430 Pa | 30.0 psf
1.42-1.70 W/m2K | 0.25-0.30 Btu
0.90-1.25 W/m2K | 0.16-0.22 Btu
DETAILS
Elegant and unique, this aluminum door adds vertical drama to any entrance. A perfectly flat surface with discreetly concealed handle and elongated window.
