Passive House Certified

AWS 90.SI+

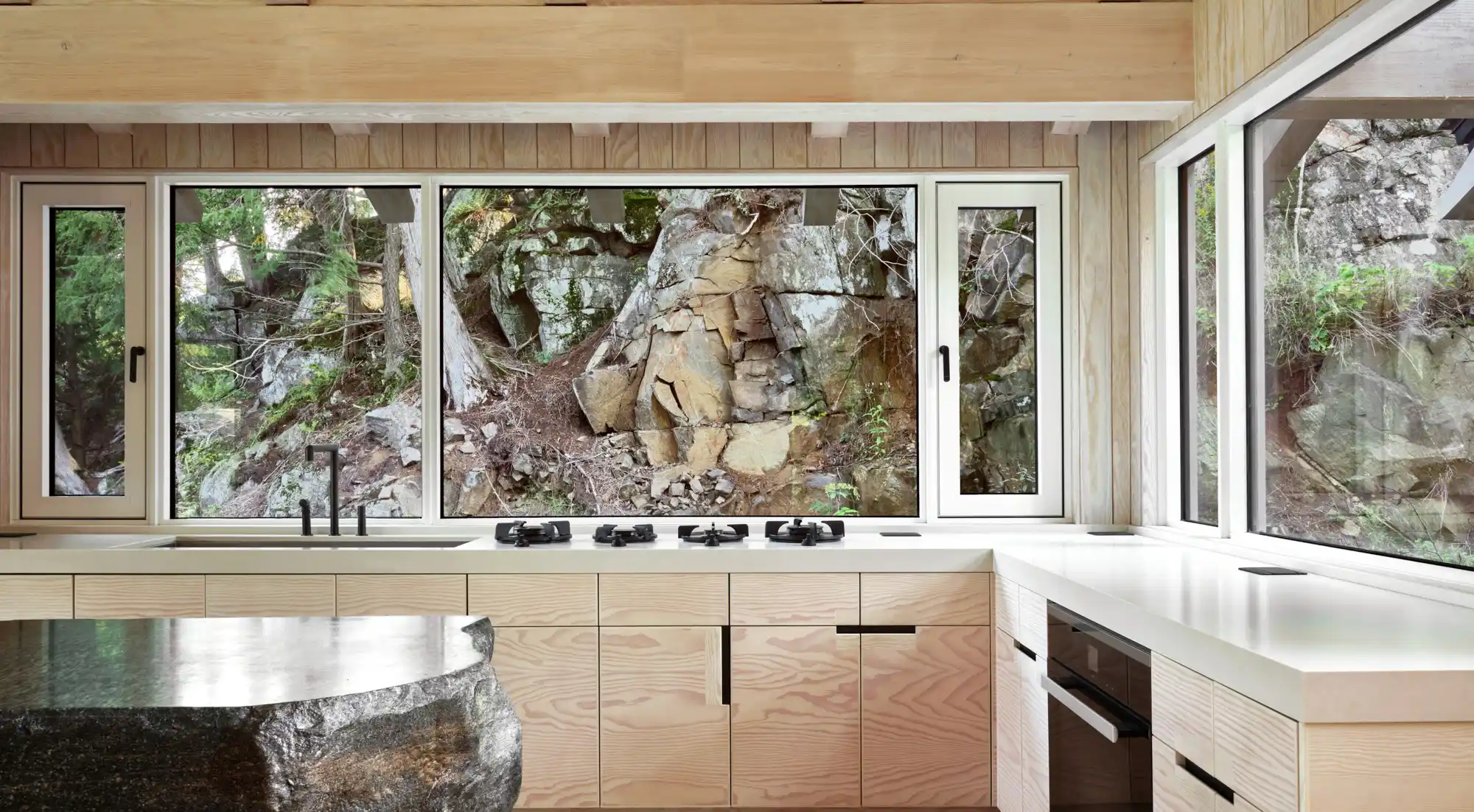

The Schüco AWS 90.SI+ (Super Insulation) window system is engineered to achieve Passive House certification.  The basic depth of 90mm (3 9/16”) features maximum thermal insulation and represents a perfect combination of structural requirements with the greatest possible degree of architectural design freedom.
The window system is available in various configurations, including turn/tilt, tilt/turn, side hung inward casement, and hopper window.
PROFILE
CONFIGURATION
OPERABLE WINDOWS
Tilt & Turn
Side Hung
Bottom Hung
Double Tilt & Turn
Double Side Hung
CONFIGURATION
TERRACE DOORS
Tilt & Turn
Side Hung
Double Tilt & Turn
Double Side Hung
LIMITATIONS

MINIMUM SIZES

MINIMUM SIZES @300Pa | 6.27 psf
MAXIMUM SIZES
MAXIMUM WEIGHT
OPERABLE WINDOWS
470 mm x 540 mm

1000 mm x 2500 mm | 1700 mm x 2100 mm

160 kg
PERFORMANCE TEST
AIR INFILTRATION @300Pa | 6.27 psf
WATER PENETRATION
THERMAL - DOUBLE GLASS
THERMAL - TRIPLE GLASS
FIXED WINDOW

<0.3 L/s/m2 | <0.01 cfm/ft2

B7 | 720 Pa | 15.04 psf

1.31-1.53 W/m2K | 0.23-0.27 Btu

0.85-1.14 W/m2K | 0.15-0.20 Btu

OPERABLE WINDOWS

A3 | 0.3 L/s/m2 | 0.05 cfm/ft2

B7 | 720 Pa | 15.04 psf

1.31-1.53 W/m2K | 0.23-0.27 Btu

0.97-1.19 W/m2K | 0.17-0.21 Btu

HANDLES
Black
Silver
Stainless Steel

DETAILS

Elegant and unique, this aluminum door adds vertical drama to any entrance. A perfectly flat surface with discreetly concealed handle and elongated window.
AWS 90.SI+

GLAZING & FINISHING OPTIONS

Elegant and unique, this aluminum door adds vertical drama to any entrance.
GLAZING & FINISHING
