Fixed & Inswing Windows

SLIMLINE 38
Its slender and user-friendly design makes the SlimLine 38 high-insulation system the perfect fit for any contemporary project. The durable aluminum windows and doors offer unlimited design freedom thanks to their multiple minimalistic variants.
PROFILE

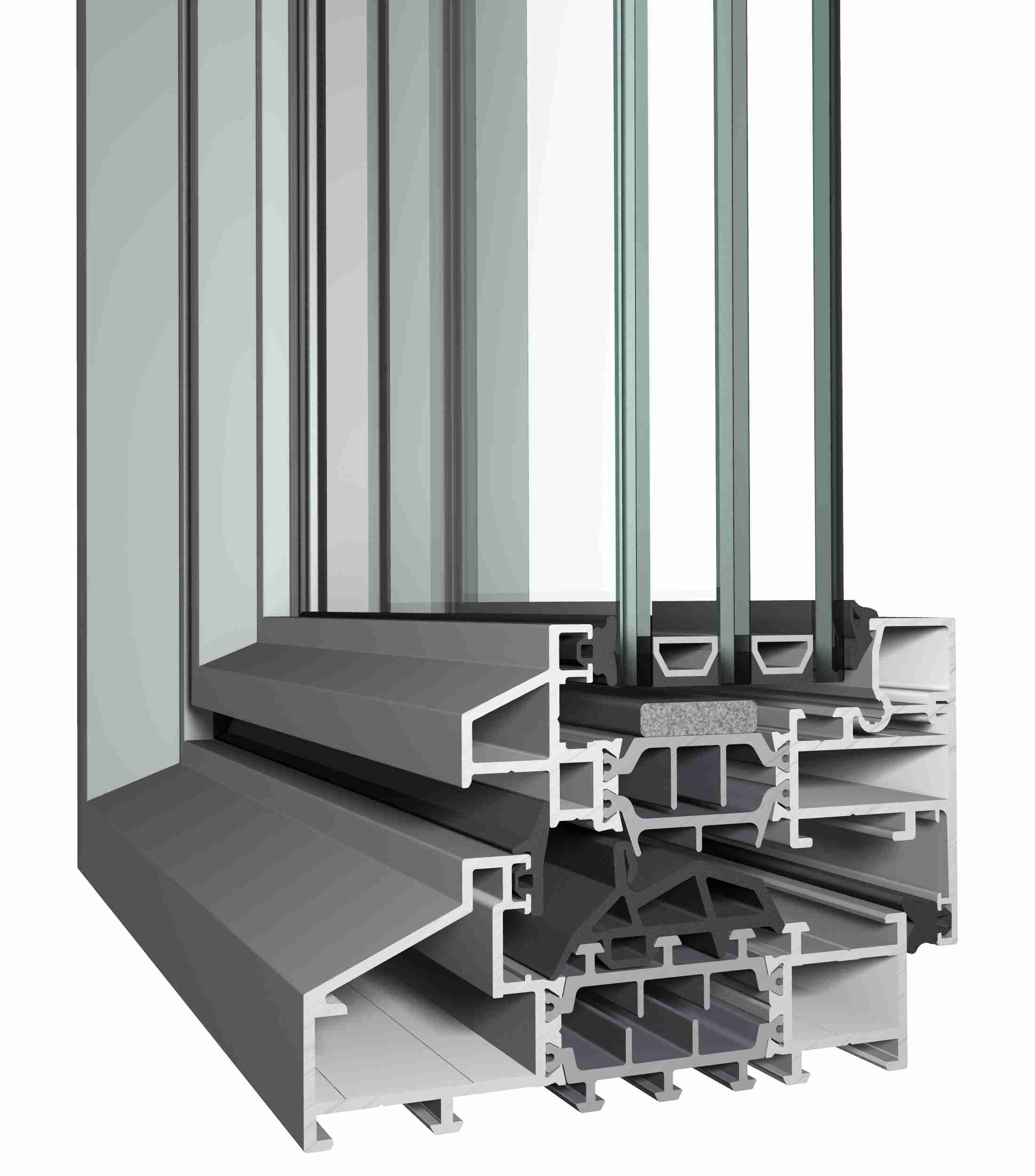

Classic

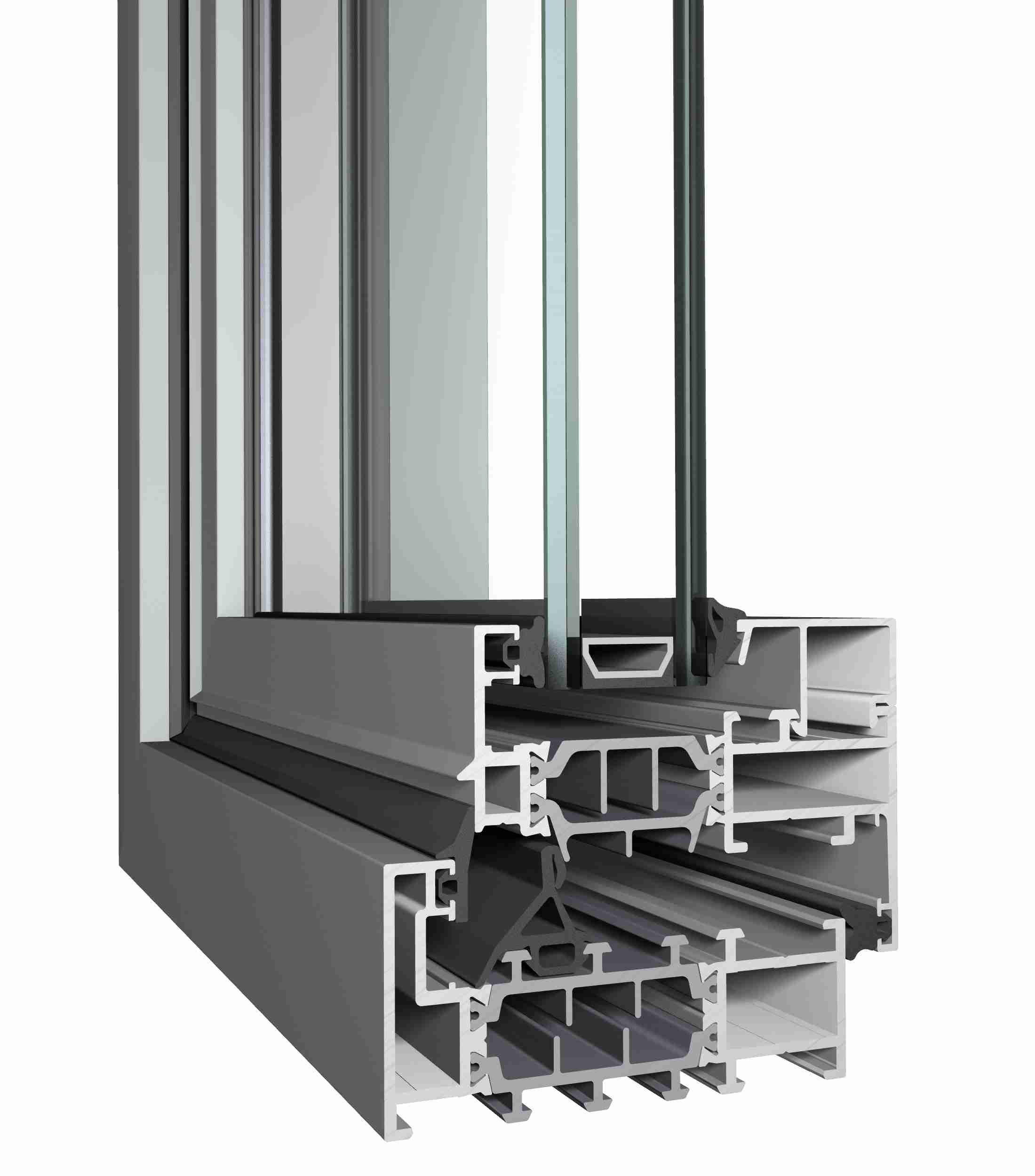

Cubic
CONFIGURATION
OPERABLE WINDOWS
Tilt & Turn
Side Hung
Bottom Hung
Double Tilt & Turn
Double Side Hung
CONFIGURATION
TERRACE DOORS
Tilt & Turn
Side Hung
Double Tilt & Turn
Double Side Hung
LIMITATIONS

MINIMUM SIZES

MINIMUM SIZES @300Pa | 6.27 psf
MAXIMUM SIZES
MAXIMUM WEIGHT
OPERABLE WINDOWS
450 mm x 600 mm

1700 mm x 2000 mm | 1200 mm x 2800 mm

170 kg
PERFORMANCE TEST
AIR INFILTRATION @300Pa | 6.27 psf
WATER PENETRATION
THERMAL - DOUBLE GLASS
THERMAL - TRIPLE GLASS
FIXED WINDOW

<0.3 L/s/m2 | <0.01 cfm/ft2

B7 | 720 Pa | 15.04 psf

1.31 W/m2K | 0.23 Btu

0.91 W/m2K | 0.16 Btu

OPERABLE WINDOWS

A3 0.3 L/s/m2 | <0.05 cfm/ft2

B7 | 720 Pa | 15.04 psf

-

-

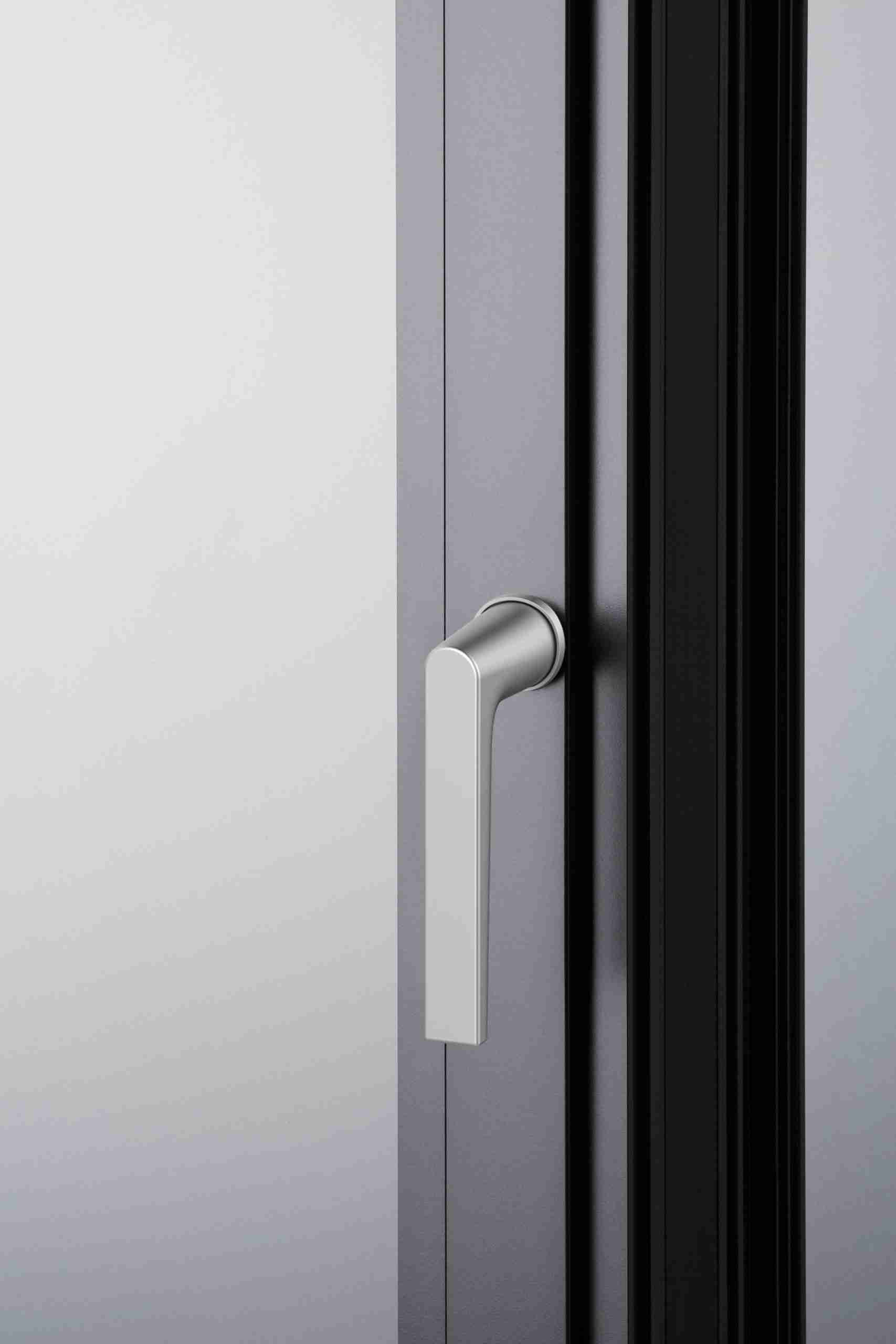

HANDLES (available in any RAL finish)
Handle
Locable handle

DETAILS

Elegant and unique, this aluminum door adds vertical drama to any entrance. A perfectly flat surface with discreetly concealed handle and elongated window.

GLAZING & FINISHING OPTIONS

Elegant and unique, this aluminum door adds vertical drama to any entrance.
GLAZING & FINISHING
